Pre-order Notice
This item is currently available for pre-order. Orders will be shipped within 120 calendar days after payment confirmation. We cover all shipping fees, while import duties, taxes, customs clearance fees, and any local charges are the buyer’s responsibility. By placing an order, you acknowledge and agree to the pre-order shipping timeline.

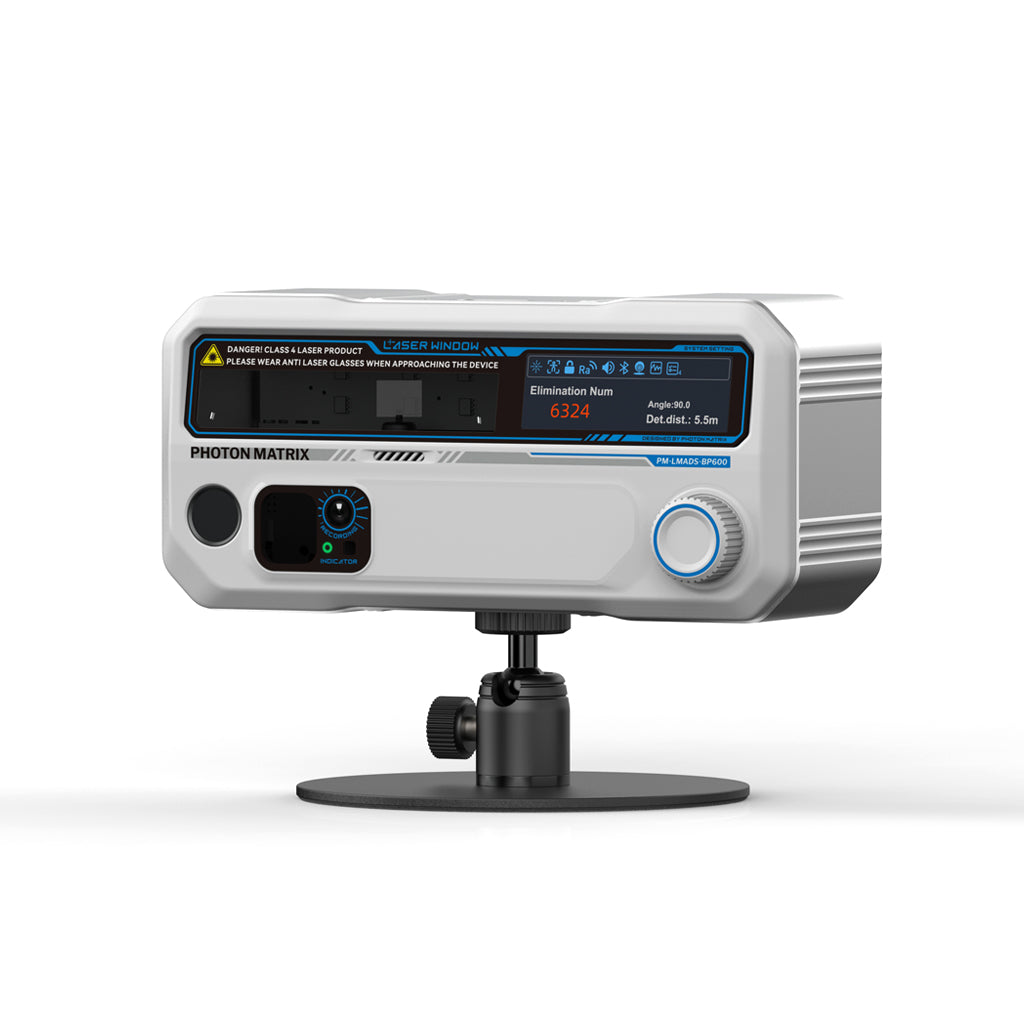

Photon Matrix Blue Laser Version
The Photon Matrix Blue Laser Version is designed for users who prefer a more visible and futuristic mosquito-defense experience. When the device detects and targets mosquitoes, it produces a visible blue flash, allowing users to clearly perceive the system in action.
This version is especially suitable for outdoor environments such as gardens, patios, terraces, camping areas, poolside spaces, and outdoor dining areas. The visible blue flash creates a stronger high-tech visual effect and makes the mosquito-defense process feel more direct and engaging.
A 20,000mAh power bank with PD/QC fast-charging support can be used for approximately 4–5 hours based on our internal test. Connect the device using our Type-C to DC adapter cable.
Technical Specifications
| Parameter | Specification |
|---|---|
| Effective Range | 6-meter radius, 90° horizontal fan-shaped scanning plane |
| Target Detection | 2–20 mm flying insects, flight speed ≤1 m/s |
| Laser Type | Blue visible laser / Infrared invisible laser — two options |
| Laser Safety Class | IEC 60825-1 Class 4 internal diode, fully enclosed with multi-layer active safety protection |
| Core Technologies | Laser Strike + LiDAR + Millimeter-Wave Radar + AI Vision Module |
| Power Input | 100–240V AC adapter, 24V DC, or Type-C to DC with PD/QC power bank |
| Power Consumption | ≤20W — operates 24/7 with minimal electricity cost |
| Noise Level | <30 dB — quieter than a whisper, imperceptible during sleep |
| Ingress Protection | IP56 — splash-resistant, suitable for patios and gardens |
| Operating Temperature | 0–40°C |
| Control Method | Onboard knob + mobile app, Bluetooth / Wi-Fi |
| Dimensions | 200 × 92 × 84 mm / L × W × H |
| Weight | Approx. 1,200 g |
| Enclosure | Aluminum alloy + engineering plastic |
| Warranty | 12 months, covering laser module, LiDAR, mainboard, power adapter, and galvanometer |
- Visible blue flash during operation
- Stronger high-tech visual effect
- More suitable for outdoor use
- Easier for users to perceive the device working
Optional Accessories Notice
Optional add-on accessories are available for purchase based on your needs. Accessories are generally shipped together with the main device and are not recommended for separate purchase. If accessories are purchased separately later, additional shipping fees may apply and will be the buyer’s responsibility.
To avoid unnecessary extra costs, we recommend selecting the required accessory combination when placing your first order.
